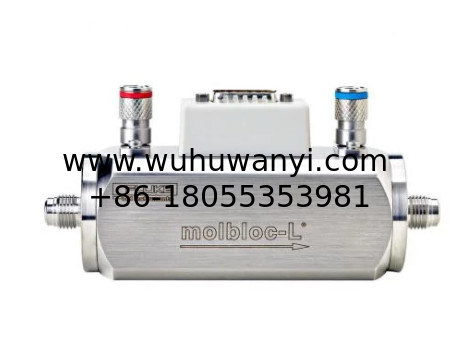

molbloc-L Laminar Flow Element MOLBLOC-S SONIC NOZZLE MOLBOX1+FLOW Terminal

Name: molbloc-L Laminar Flow Element MOLBLOC-S SONIC NOZZLE MOLBOX1+FLOW Terminal
Brand: WUHU WANYI INDUSTRY CO.,LTD
SKU: molbloc-L Laminar Flow Element MOLBLOC-S SONIC NOZZLE MOLBOX1+FLOW Terminal
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Fluke

Certification: CCCI

Model Number: molbloc-L Laminar Flow Element MOLBLOC-S SONIC NOZZLE MOLBOX1+FLOW Terminal

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Delivery Time: 15-20days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs

Get Best Price

Product Details

Product Description

Highlight:

molbloc-L Laminar Flow Element MOLBLOC-S SONIC NOZZLE MOLBOX1+FLOW Terminal

Product overview: molbloc-L Laminar Flow Element

Features at a glance

Useable with existing molbox1+ and molbox RFM mass flow terminals and COMPASS software
Integrated filter to protect against contamination
Integral gas temperature conditioning and measurement
Continuous, real-time reading
Can be fully automated
No moving parts

molbloc-L Ranges
molblocs sizes are designated by a number relative to their nominal flow impedance. The nominal impedance results in nominal flow ranges when flowing nitrogen gas with 250 kPa absolute (36 psia) upstream pressure and 50 kPa (7.5 psid) differential pressure across the molbloc. In practice, the molbloc flow range may be quite different from the nominal flow range. The difference comes from differences in density and viscosity between gases and from different molbloc operating pressure calibration options.

Specifications: molbloc-L Laminar Flow Element

Specifications - Standard molbloc-L Calibrations - Used with molbox1+ terminal
Measurement Update Rate	1 second
Range	0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type (see Section 1.2.5.1.3)
Resolution	0.0015 % FS
Linearity	± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Repeatability	± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Precision¹	± 0.07 % of reading from 10 to 100 % FS, ± 0.007 % FS under 10 % FS
Stability² (1 year)	± 0.09 % of reading from 10 to 100 % FS, ± 0.009 % FS under 10 % FS
Measurement Uncertainty³	± 0.2 % of reading from 10 to 100 % FS, ± 0.02 % FS under 10 % FS
(N2 and any molbox1+ supported gas for which the molbloc in use is calibrated)	1E5 molbloc ± 0.5% of reading from 25 to 100 % FS, ± 0.125 % FS under 25 % FS
¹ Precision: Combined linearity, hysteresis, repeatability. ² Stability: Maximum change in zero and span over specified time period for typical molbox1+ and molbloc used under typical conditions. As stability can only be predicted, stability for a specific molbloc and molbox1+ should be established from experience. ³ Measurement uncertainty (accuracy): Maximum deviation of the molbox1+ flow indication from the true value of the flow through the molbloc including precision, stability and Fluke calibration standard measurement uncertainty.

Specifications - Premium molbloc-L Calibrations - Used with molbox1+ terminal
Measurement Update Rate	1 second
Range	0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type (see Section 1.2.5.1.2)
Resolution	0.0015 % FS
Linearity	± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Repeatability	± 0.05 % of reading from 10 to 100 % FS, ± 0.005 % FS under 10 % FS
Precision¹	± 0.07 % of reading from 10 to 100 % FS, ± 0.007 % FS under 10 % FS
Stability² (1 year)	± 0.03 % of reading from 10 to 100 % FS, ± 0.003 % FS under 10 % FS
Measurement Uncertainty³	± 0.125 % of reading from 10 to 100 % FS, ± 0.0125 % FS under 10 % FS
(N2 and any molbox1+ supported gas for which the molbloc in use is calibrated)	1E5 molbloc-L Premium calibration not available
¹ Precision: Combined linearity, hysteresis, repeatability. ² Stability: Maximum change in zero and span over specified time period for typical molbox1+ and molbloc used under typical conditions. As stability can only be predicted, stability for a specific molbloc and molbox1+ should be established from experience. ³ Measurement uncertainty (accuracy): Maximum deviation of the molbox1+ flow indication from the true value of the flow through the molbloc including precision, stability and Fluke calibration standard measurement uncertainty.

Specifications - Standard molbloc-L Calibrations - Used with molbox RFM terminal
	molbloc-L (ranges 1E1-L thru 3E4-L)
Measurement update rate	1 second
Range	0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type (see molbloc-L range sheet tables)
Resolution	0.01 % FS
Linearity	± 0.23 % of reading from 10 % to 100 % FS, ± 0.023 % FS under 10 % FS
Repeatability	± 0.1% of reading from 10 % to 100 % FS, ± 0.01% FS under 10 % FS
Precision¹	± 0.25 % of reading from 10 % to 100 % FS, ± 0.025 % FS under 10 % FS
Predicted stability² (one year)	± 0.15 % of reading from 10 % to 100 % FS, ± 0.015 % FS under 10 % FS
Measurement uncertainty³	± 0.5 % of reading from 10 % to 100 % FS, ± 0.05 % FS under 10 % FS

molbox RFM with Microrange option
	molbloc-L (ranges 1E1-L thru 3E4-L)	molbloc-L (ranges 1E5 only)
Measurement update rate	1 second	1 second
Range	0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type (see molbloc-L tables)	0 to molbloc full scale depending on gas and molbloc pressure dependent calibration type (see molbloc-L tables)
Resolution	0.01 % FS, 0.001 % FS under 0.001 % FS under 10% FS	0.01 % FS
Linearity	± 0.23 % of reading from 1 % to 100 % FS, ± 0.0023 % FS under 1 % FS	± 0.25 % of reading from 5 % to 100 % FS, ± 0.0125 % FS under 5 % FS
Repeatability	± 0.1 % of reading from 1 % to 100 % FS, ± 0.001 % FS under 1 % FS	± 0.2 % of reading from 5 % to 100 % FS, ± 0.01 % FS under 5% FS
Precision¹	± 0.25 % of reading from 1 % to 100 % FS, ± 0.0025 % FS under 1% FS	± 0.32 % of reading from 5 % to 100 % FS, ± 0.016 % FS under 5 % FS
Predicted stability² (one year)	± 0.15 % of reading from 1 % to 100 % FS, ± 0.0015 % FS under 1 % FS	± 0.2 % of reading from 5 % to 100 % FS, ± 0.01 % FS under 5 % FS
Measurement uncertainty³	± 0.5 % of reading from 1 % to 100 % FS, ± 0.005 % FS under 1 % FS	± 0.5 % of reading from 5 % to 100 % FS, ± 0.025 % FS under 5 % FS
