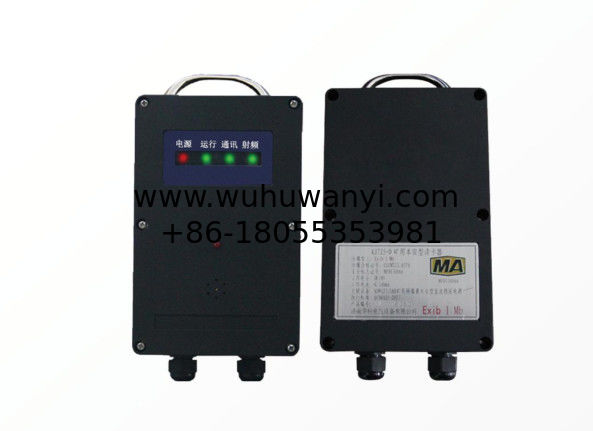

KJ725-D mine intrinsic safety card reader

Name: KJ725-D mine intrinsic safety card reader
Brand: WUHU WANYI INDUSTRY CO.,LTD
SKU: KJ725-D
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WANYI

Certification: CCCI

Model Number: KJ725-D

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Delivery Time: 15-20days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs

Get Best Price

Product Details

Product Description

Highlight:

KJ725-D mine intrinsic safety card reader

Product Introduction
Mining intrinsic safety card reader with plastic shell design. Compact and convenient, quick and easy to install. The indicator light design facilitates the observation of equipment status. When reading the card, the buzzer sounds.
Product parameters
1) Power supply:
a) Rated working voltage: DC18V;
b) Working current: ≤ 100mA;
2) Main technical parameters for wireless transmission of card readers and identification cards;
a) Modulation method: GFSK;
b) Operating frequency: 2.4GHz ± 0.08GHz; c) Receiving sensitivity: ≤ -80dBm
d) Effective transmission distance: ≥ 80m (unobstructed); 3) Technical parameters of wired transmission;
3) Technical parameters of wired transmission
a) Transmission method: 485 bus;
b) Transmission rate: 2400bps;
c) Peak to peak voltage for transmitting signals: 1V~8V;
d) Maximum transmission distance: The farthest transmission distance between the substation and the substation is 2km.
Product Features
The card reading distance is greater than 80 meters, and the number of recognized cards is greater than 100. Real time transmission of data to personnel positioning substation. The wireless frequency is 2.4GHz. Low power design, matched with KDW127/18B mining explosion-proof and intrinsic safety power supply.
