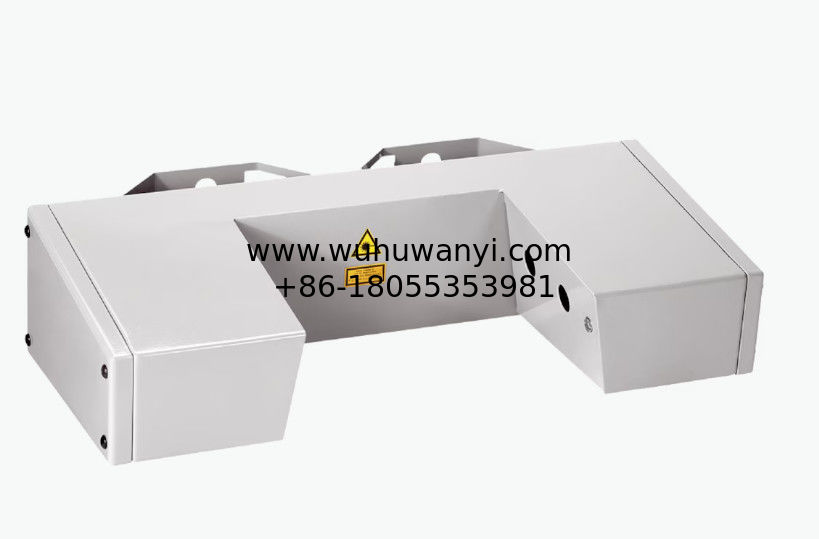

Name: SICK Visual range measuring devices: VISIC620 VISIC620-2111
Brand: WUHU WANYI INDUSTRY CO.,LTD
SKU: VISIC620 VISIC620-2111
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SICK

Certification: CCCI

Model Number: VISIC620 VISIC620-2111

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton

Delivery Time: 10-15days

Payment Terms: T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

SICK Visual range measuring devices: VISIC620 VISIC620-2111

Description

Visibility measuring device
incl. connecting cable, with male connector, length 5 m, with RS-485 interface and binary input

Measured values

Standard visual range, K-value

Maximum number of measurands

Measurement principles

Scattered light forward

Spectral range
	640 nm ... 660 nm Laser, protection class 2, power < 1 mW

Measuring ranges
Standard visual range	10 ... 500 m / 10 ... 16,000 m
	Output range freely adjustable

Response time (t₉₀)

2 s ... 300 s

Accuracy
	± 5 m For visual range below 50 m
	± 10 % Of measured value for visual range below 5,000 m
	± 20 % Of measured value for visual range below 16,000 m

Repeatability
	± 2 %: for a visual range of 200 m

Ambient temperature
	–30 °C ... +55 °C

Storage temperature
	–40 °C ... +75 °C

Ambient humidity
	0 % ... 100 %

Electrical safety

Enclosure rating
	IP69K

Digital inputs

1 potential-free contact:
4 V, 4.5 mA

Serial	✔
Type of fieldbus integration	RS-232
	RS-485
Function	Proprietary service interface, connection to SOPAS ET software
	Proprietary service interface

Dimensions (W x H x D)
	479 mm x 117 mm x 261 mm (for details see dimensional drawings)

Weight
	5.6 kg

Material

Stainless steel 1.4571, powder-coated

Energy supply
Voltage	24 V DC, ± 10 %
Power consumption	≤ 10 W

Test functions

Automatic self-test (contamination, drift, LED, disturbing objects)
